Product Range

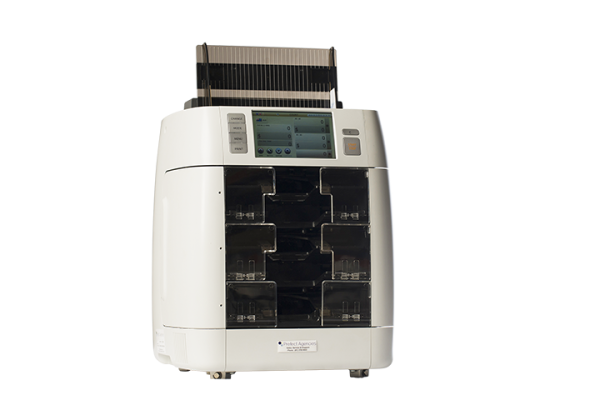

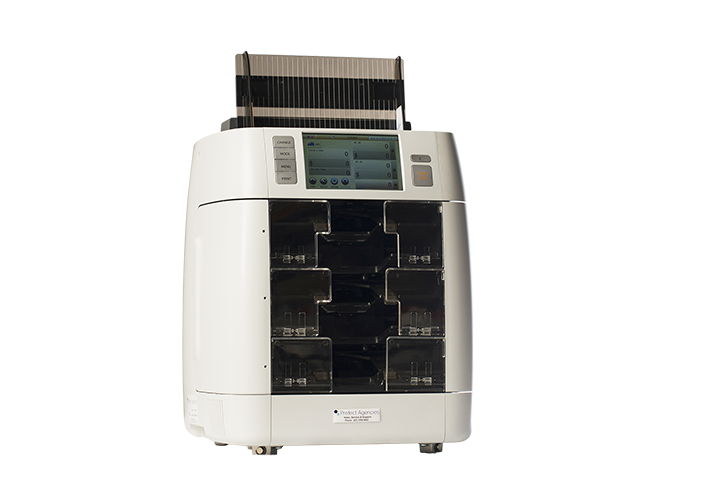

SB-3000 Note Sorter

SB Series from Hyundai MIB uses  cutting edge twin Image Processing Technology to recognise banknotes, TITO tickets and to discriminate between different denominations and or tickets.

SB-3000 can also handle TITO (tickets, voucher). First, it scans and acknowledges gaming machine ID and amount. Second, it sends scanned images and analyzed ID, amount and so on (customizable on request) to a PC for strage or send the data and images to a server.

SB-3000, one of the most advanced note processing system on the market. The unit has the world’s smallest footprint for a 3 pocket sorter, so is ideal for venues and count rooms with restricted space. SB-3000 has various and useful functions to keep up with growing customers requirements. With modern design, 4″ TFT Colour LCD and user-friendly interface.

The SB-3000 provides every operator with more comfortable and efficient working environment. Three pocket unit allow operator to perform daily cash processing jobs and sort banknotes by quality, denomination and counterfeit without any interruption.

The unit is already configured for the new RBA $50,$20 and $100 ( due Oct 2020).

SB-3000 can handle up to 12 currency mix.
All our SB (MIB) Devices are all configured for New Calidonia XPF
Nos appareils SB (MIB) sont tous configurés pour New Calidonia XPF

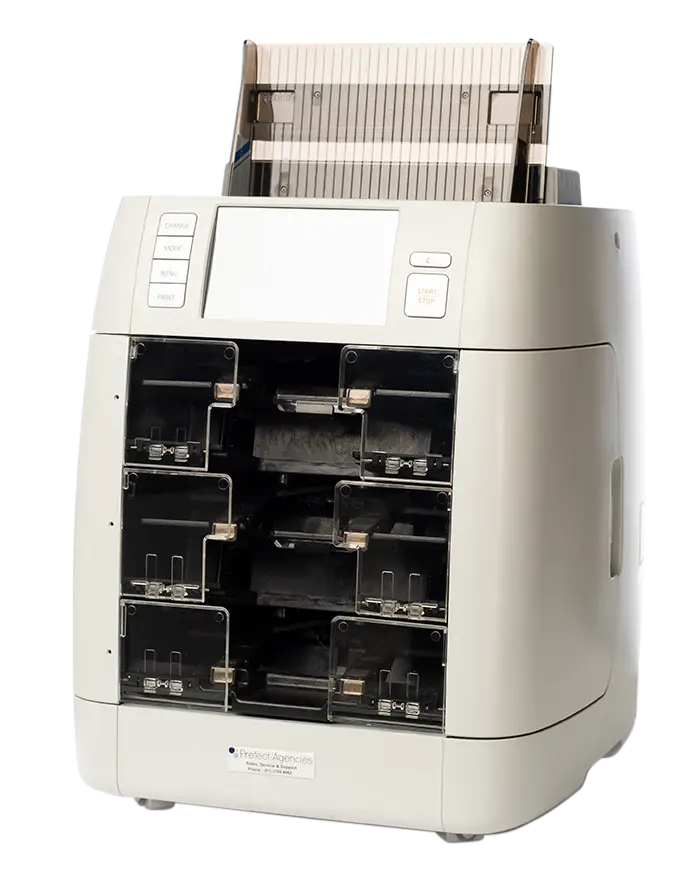

SB-3000
50+ currencies (USD, EUR, JPY, CNY, GBP, RUB, CAD, AUD, etc) are available.

More Features
  • Fitness Sorting – Tape, Dog-ear, Soil, Tear, Hole, Graffiti, Stamp etc.
  • Multiple Currencies Capability – can be configured with up to 10 currencies
  • Various Operation Modes – Mixed / Single / Face / Orient / Count / (Issue / SRL / P-OCR)
  • Various Count Modes – Mixed / Single / Count / Face / Orient / Fitness (Option: Issue / Serial No. Recognition & Comparison)
  • New Type of Stacker – Lift Type
  • Enhanced Sensors – CIS (Option: 2 CIS) / Magnetic/ UV / IR Mechanical Roller Tape Detector
  • User Friendly – Resistive Touch Screen Hard Key, Detachable 4″TFT Color LCD, Multi Language support
Specifications
  • Dimensions: 306(W) X 334(D) X 380(H)
  • Weight (Net) Approx.18 Kg
  • Nos of Pockets 3
  • Hopper Capacity 700 notes
  • Stacker Capacity 200 notes
  • Reject Capacity 100 notes
  • Counting Speed 700/ 1000 npm
  • Interface 3 x RS-232C / USB A&B / (LAN)
