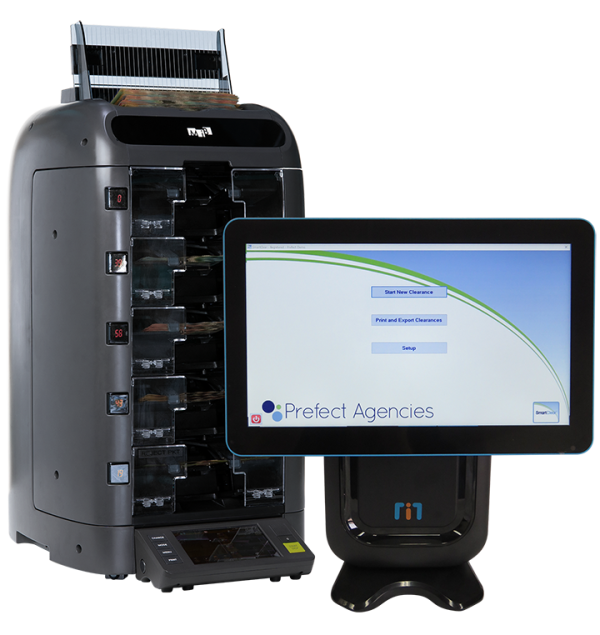

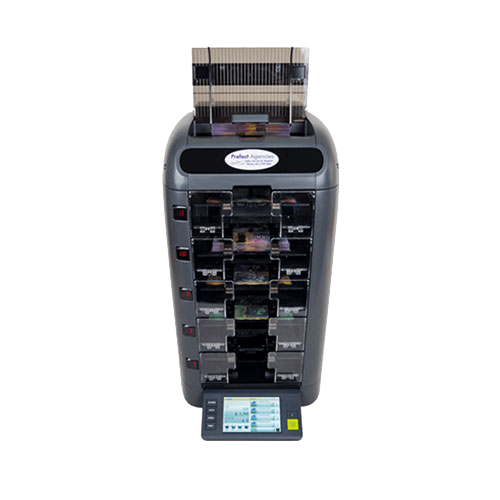

SB-5000 Note Sorter

The SB series from Hyundai MIB uses  cutting edge Image Processing Technology to recognise banknotes and to discriminate between different denominations.

SB-5000, one of the most advanced note processing system on the market. The unit has the world’s smallest footprint for a 5 pocket sorter, so is ideal for venues and count rooms with restricted space. SB-5000 has various and useful functions to keep up with growing customers requirements. With modern design, 5″ TFT Colour LCD and user-friendly interface, SB-5000 provides every operator with more comfortable and efficient working environment. 5 pockets allow operator to perform daily cash processing jobs and sort banknotes by quality, denomination and counterfeit without any interruption.

The SB-3000 provides every operator with more comfortable and efficient working environment. Three pocket unit allow operator to perform daily cash processing jobs and sort banknotes by quality, denomination and counterfeit without any interruption.

The unit is already configured for the new RBA $50,$20 and $100 ( due Oct 2020).

The SB-5000 can handle up to 15 currency mix at anyone time with 50+ currencies (USD, EUR, JPY, CNY, GBP, RUB, CAD, AUD, etc) to choose from.
Also the SB-5000 as with MIB devices all are configured for New Calidonia XPF, we also service and install in New Calidonia
Nos appareils SB (MIB) sont tous configurés pour New Calidonia XPF Nous entretenons et installons également en Nouvelle-Calidonie

The unit is already configured for the new RBA $50, $20 notes and comes with free upgrade for new $100, due out in Sept 2020.

More Features
  • Fitness Sorting – Tape, Dog-ear, Soil, Tear, Hole, Graffiti, Stamp etc.
  • Multiple Currencies Capability – can be configured with up to 10 currencies
  • Various Operation Modes – Mixed / Single / Face / Orient / Count / (Issue / SRL / P-OCR)
  • Various Count Modes – Mixed / Single / Count / Face / Orient / Fitness (Option: Issue / Serial No. Recognition & Comparison)
  • New Type of Stacker – Lift Type
  • Enhanced Sensors – CIS (Option: 2 CIS) / Magnetic/ UV / IR Mechanical Roller Tape Detector
  • User Friendly – Resistive Touch Screen Hard Key, Detachable 5″TFT Color LCD, Multi Language support
Specifications
  • Dimensions: 317(W) X 335(D) X 555(H)
  • Weight (Net) Approx.27 Kg
  • Nos of Pockets 5
  • Hopper Capacity 700 notes
  • Stacker Capacity 200 notes
  • Reject Capacity 200 notes
  • Counting Speed 700/ 1000 npm
  • Interface 3 x RS-232C / USB A&B / (LAN)
